ZXQ-C1200Non Woven Cross Cutting Machine With Online Handle Attaching

Contact Or Visit Us

  • Product Detail

Product Selective configuration


Usage:
This machine is an advanced specialized non-woven cross cutting equipment,has the function of auto bonding the handle loop while slicing (speed up to 10pcs/min).It is mainly used in the producing of manual non-woven sealing bags,wine bags and gift bags etc.,which is largely improved the production efficiency,reduce the labor intensity and cost.

Feature:
1.This machine adopts computer control system,stepping motor cutting control system,photoelectric tracking,auto rectifying deviation,no material alarming,main motor frequency conversion speed control,tension control and ultrasonic welding etc.
2.After the month folding,welding the double handle loop on the material by two side handle bonding machine,and then cutting.
3.Adopts quality cutting knife,wear-resistant,durable,product cutting is tidy and beautiful.
4.Simple operation,only need one man to operate the machine.
5.Conveniently and quick installation.
6.Speed up to 70pcs/min
7.Process:feeding material--mouth folding---ultrasonic welding the handle--cutting--counting--collection

Product Sample

Technical Parameter

Model ZXQ-C1200
Fabric Roll Width 500-1250mm
Production Speec "40-100pcs/mir"
Feeding Length 280-800mm
Cutting Width 500-1200mm
Handle Material Thickness "50-100g/m"
Handle Length 350-600mm
MaterialThickness 35-120g/m
Voltag 380V/220V
Total Powe 13kw
Overall Dimensior 6500x2300x1800mm
Weight 2600kc"

Detail Drawing

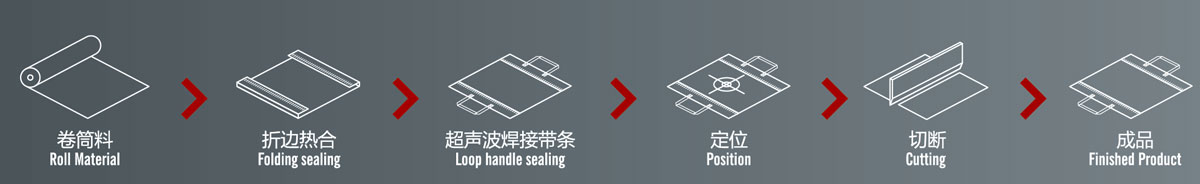

Flow Diagram
